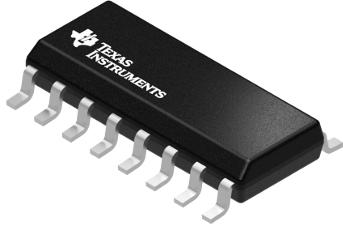

Level Translators CD4504BM
Texas Instruments
CD4504BM
--
Standard and Specialty Logic
Level Translators
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Push-Pull |
| PCB changed | 16 |
| Part Status | Active |
| Translation | CMOS/TTL to CMOS |
| Channel Type | Unidirectional |
| Logic Family | CD4000 |
| Package Width | 4(Max) |
| Logic Function | Voltage Level Shifter |
| Package Height | 1.5(Max) |
| Package Length | 10(Max) |
| Supplier Package | SOIC |
| Number of Channels | 6 |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Maximum Quiescent Current (mA) | 5 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Absolute Propagation Delay Time (ns) | 550 |
| Maximum Operating Supply Voltage (V) | 18 |
| Minimum Operating Supply Voltage (V) | 5 |
| Typical Operating Supply Voltage (V) | 12|9|15 |
| Maximum Low Level Output Current (mA) | 4.2(Min) |
| Maximum High Level Output Current (mA) | -4.2(Min) |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 550@5V@15V |
