Level Translators 74AVCH2T45DCURE4
Texas Instruments

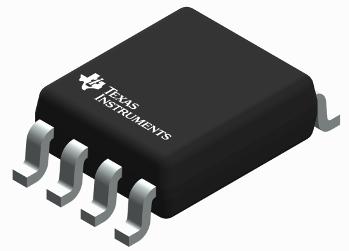

74AVCH2T45DCURE4
--
Standard and Specialty Logic
Level Translators
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | 3-State |
| PCB changed | 8 |
| Part Status | Obsolete |
| Channel Type | Bidirectional |
| Logic Family | AVC |
| Package Width | 2.4(Max) |
| Logic Function | Voltage Level Translator |
| Package Height | 0.8(Max) |
| Package Length | 2.1(Max) |
| Supplier Package | VSSOP |
| Number of Channels | 2 |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Maximum Quiescent Current (mA) | 0.02 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 13.9 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 1.2 |
| Typical Operating Supply Voltage (V) | 3.3|1.8|2.5 |
| Maximum Low Level Output Current (mA) | 12 |
| Maximum High Level Output Current (mA) | -12 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 5.4@1.5V |
| Description |
