Level Translators 100325QIX
onsemi

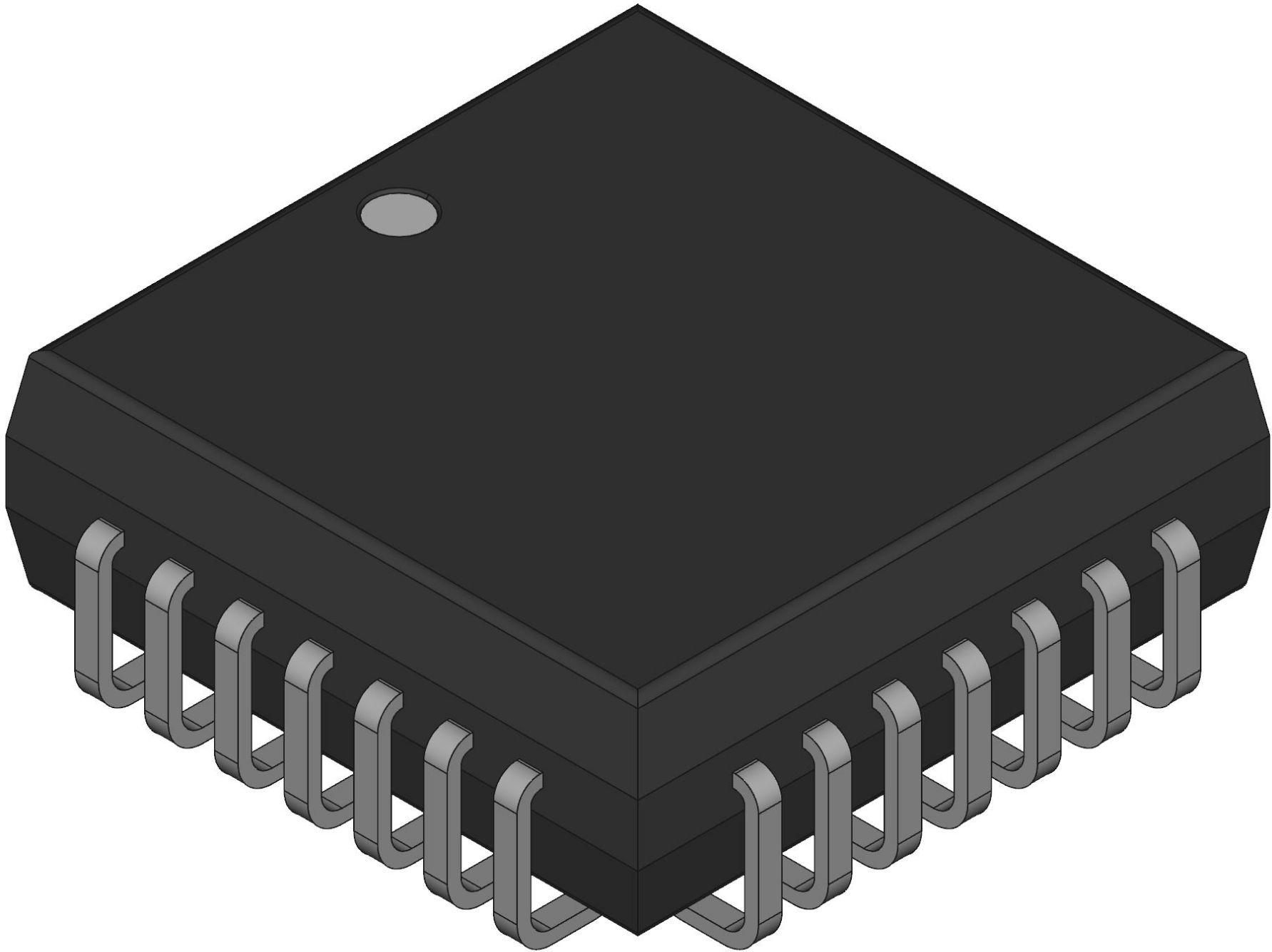

100325QIX
--
Standard and Specialty Logic
Level Translators
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 28 |
| Automotive | No |
| Lead Shape | J-Lead |
| PCB changed | 28 |
| Part Status | Obsolete |
| Translation | ECL to TTL |
| Channel Type | Unidirectional |
| Logic Family | ECL |
| Package Width | 11.58(Max) |
| Logic Function | Translator |
| Package Height | 3.66(Min) |
| Package Length | 11.58(Max) |
| Supplier Package | PLCC |
| Number of Channels | 6 |
| Process Technology | ECL |
| Standard Package Name | LCC |
| Supplier Temperature Grade | Industrial |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 4.6 |
| Maximum Operating Supply Voltage (V) | -5.7/5.5 |
| Minimum Operating Supply Voltage (V) | -4.2/4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 20 |
| Maximum High Level Output Current (mA) | -2 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 4.3@-4.2V to -5.7V@4.5V to 5.5V |
| Description |
