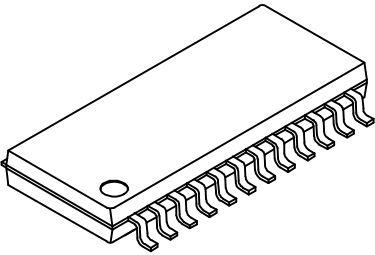

100324SCX
100324SCX
Level Translators 100324SCX
onsemi
100324SCX
--
Standard and Specialty Logic
Level Translators
100324SCX.pdf
Specification
Product AttributeAttribute Value
PPAPNo
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count24
AutomotiveNo
Lead ShapeGull-wing
PCB changed24
Part StatusObsolete
TranslationTTL to ECL
Channel TypeUnidirectional
Logic FamilyECL
Package Width7.5
Logic FunctionTranslator
Package Height2.35(Max)
Package Length15.4
Supplier PackageSOIC W
Number of Channels6
Process TechnologyECL
Standard Package NameSOP
Supplier Temperature GradeCommercial
Maximum Operating Temperature (°C)85
Minimum Operating Temperature (°C)0
Absolute Propagation Delay Time (ns)2.8
Maximum Operating Supply Voltage (V)-5.7/5.5
Minimum Operating Supply Voltage (V)-4.2/4.5
Typical Operating Supply Voltage (V)5
Maximum High Level Output Current (mA)-50
Maximum Propagation Delay Time @ Maximum CL (ns)2.7@-4.2V to -5.7V@4.5V to 5.5V
Description
Translator TTL to ECL 6-CH Unidirectional 24-Pin SOIC W T/R
