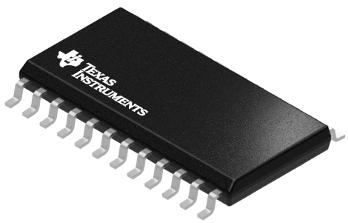

Latches SN74ABT841ADW
Texas Instruments
SN74ABT841ADW
--
Standard and Specialty Logic
Latches
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| Type | D-Type |
| EU RoHS | Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 24 |
| Set/Reset | No |
| Automotive | No |
| Latch Mode | Transparent |
| Lead Shape | Gull-wing |
| Output Type | 3-State |
| PCB changed | 24 |
| Part Status | Active |
| Logic Family | ABT |
| Package Width | 7.6(Max) |
| Package Height | 2.35(Max) |
| Package Length | 15.6(Max) |
| Supplier Package | SOIC |
| Process Technology | BiCMOS |
| Standard Package Name | SOP |
| Number of Inputs per Chip | 10 |
| Number of Outputs per Chip | 10 |
| Supplier Temperature Grade | Commercial |
| Number of Channels per Chip | 10 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (uA) | 38000 |
| Typical Quiescent Current (uA) | 24000 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Number of Input Enables per Element | 1 |
| Absolute Propagation Delay Time (ns) | 7.1 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Number of Output Enables per Element | 1 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 64 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -32 |
| Number of Selection Inputs per Element | 0 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 5.5@5V |
| Description |
