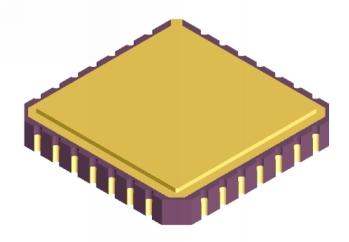

Latches 5962-9676901Q3A
Texas Instruments
5962-9676901Q3A
--
Standard and Specialty Logic
Latches
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | D-Type |
| EU RoHS | Not Compliant |
| Bus Hold | No |
| Mounting | Surface Mount |
| Polarity | Non-Inverting |
| ECCN (US) | 3A001.a.2.c |
| Packaging | Tube |
| Pin Count | 28 |
| Set/Reset | No |
| Automotive | No |
| Latch Mode | Transparent |
| Lead Shape | No Lead |
| Output Type | 3-State |
| PCB changed | 28 |
| Part Status | Obsolete |
| Logic Family | ABT |
| Package Width | 11.63(Max) |
| Package Height | 2.03(Max) |
| Package Length | 11.63(Max) |
| Supplier Package | CLLCC |
| Process Technology | BiCMOS |
| Standard Package Name | LLCC |
| Number of Inputs per Chip | 10 |
| Number of Outputs per Chip | 10 |
| Supplier Temperature Grade | Military |
| Number of Channels per Chip | 10 |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (uA) | 38000 |
| Typical Quiescent Current (uA) | 24000 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Number of Input Enables per Element | 1 |
| Absolute Propagation Delay Time (ns) | 7.4 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Number of Output Enables per Element | 1 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 48 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -24 |
| Number of Selection Inputs per Element | 0 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 5.5@5V |
| Description |
