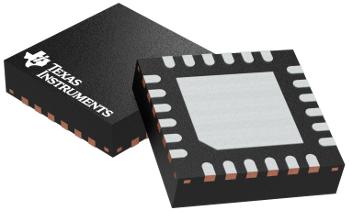

LVDS SN65LVDS315RGERG4
Texas Instruments
SN65LVDS315RGERG4
--
Drivers and Interfaces
LVDS
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Function | Converter |
| Mounting | Surface Mount |
| Packaging | Tape and Reel |
| Pin Count | 24 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 24 |
| Part Status | Obsolete |
| Package Width | 4.15(Max) |
| Package Height | 0.95(Max) |
| Package Length | 4.15(Max) |
| Supplier Package | VQFN EP |
| Input Signal Type | CMOS |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Standard Package Name | QFN |
| Maximum Input Current (uA) | 0.2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation (mW) | 26 |
| Maximum Operating Frequency (MHz) | 27 |
| Minimum Operating Frequency (MHz) | 3.5 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 1.95|3.6 |
| Minimum Operating Supply Voltage (V) | 1.65 |
| Typical Operating Supply Voltage (V) | 1.8 |
| Maximum Differential Output Voltage (V) | 0.25 |
| Description |
