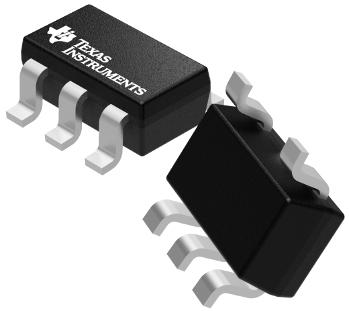

LVDS SN65LVDS1DBVR
Texas Instruments
SN65LVDS1DBVR
--
Drivers and Interfaces
LVDS
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Function | Driver |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 5 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 5 |
| Part Status | Active |
| Package Width | 1.75(Max) |
| Package Height | 1.1 |
| Package Length | 3.05(Max) |
| Supplier Package | SOT-23 |
| Input Signal Type | LVTTL |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Standard Package Name | SOT |
| Maximum Input Current (uA) | 20 |
| Number of Elements per Chip | 1 |
| Transmission Data Rate (Mbps) | 630 |
| Maximum Power Dissipation (mW) | 25(Typ) |
| Maximum Operating Frequency (MHz) | 200 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 3.1 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 2.4 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Differential Output Voltage (V) | 0.454 |
| Differential Input Low Threshold Voltage (V) | -0.1(Min) |
| Differential Input High Threshold Voltage (V) | 0.1(Max) |
| Description |
