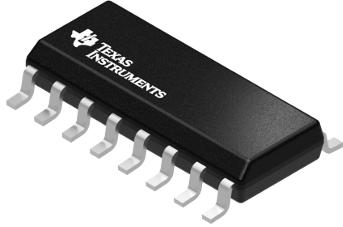

LVDS SN65LVDM050DRG4
Texas Instruments
SN65LVDM050DRG4
--
Drivers and Interfaces
LVDS
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Function | Driver/Receiver |
| Mounting | Surface Mount |
| Packaging | Tape and Reel |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 16 |
| Part Status | Obsolete |
| Package Width | 4(Max) |
| Package Height | 1.5(Max) |
| Package Length | 10(Max) |
| Supplier Package | SOIC |
| Input Signal Type | LVTTL|LVDM |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Standard Package Name | SOP |
| Maximum Input Current (uA) | 20 |
| Number of Elements per Chip | 2 |
| Transmission Data Rate (Mbps) | 100 |
| Maximum Power Dissipation (mW) | 1110 |
| Maximum Operating Frequency (MHz) | 200 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 4.5 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Differential Output Voltage (V) | 0.454 |
| Differential Input Low Threshold Voltage (V) | -0.05 |
| Differential Input High Threshold Voltage (V) | 0.05 |
| Description |
