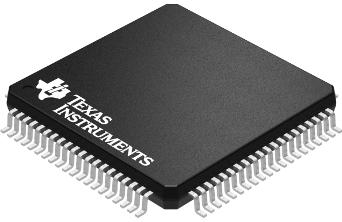

LVDS DS92LV16TVHG
Texas Instruments
DS92LV16TVHG
--
Drivers and Interfaces
LVDS
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Function | Serializer/Deserializer |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tray |
| Pin Count | 80 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 80 |
| Part Status | NRND |
| Package Width | 12.2(Max) |
| Package Height | 1.45(Max) |
| Package Length | 12.2(Max) |
| Supplier Package | LQFP |
| Input Signal Type | LVCMOS|LVTTL |
| Number of Drivers | 1 |
| Number of Receivers | 16 |
| Standard Package Name | QFP |
| SVHC Exceeds Threshold | Yes |
| Maximum Input Current (uA) | 10 |
| Supplier Temperature Grade | Industrial |
| Number of Elements per Chip | 1 |
| Transmission Data Rate (MBps) | 2560 |
| Maximum Operating Frequency (MHz) | 80 |
| Minimum Operating Frequency (MHz) | 25 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 3.45 |
| Minimum Operating Supply Voltage (V) | 3.15 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Differential Output Voltage (V) | 0.55 |
| Differential Input Low Threshold Voltage (V) | -0.1 |
| Differential Input High Threshold Voltage (V) | 0.1 |
| Description |
