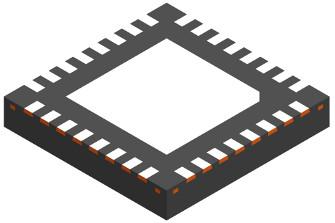

LVDS DS90LV804TSQ
Texas Instruments
DS90LV804TSQ
--
Drivers and Interfaces
LVDS
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Not Compliant |
| Function | Buffer/Repeater |
| Mounting | Surface Mount |
| ECCN (US) | 5A991B1 |
| Packaging | Tape and Reel |
| Pin Count | 32 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 32 |
| Part Status | NRND |
| Package Width | 5.15(Max) |
| Package Height | 0.75(Max) |
| Package Length | 5.15(Max) |
| Supplier Package | WQFN EP |
| Input Signal Type | CML|LVDS|LVPECL |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Standard Package Name | QFN |
| SVHC Exceeds Threshold | Yes |
| Maximum Input Current (uA) | 10 |
| Number of Elements per Chip | 4 |
| Transmission Data Rate (Mbps) | 800 |
| Maximum Power Dissipation (mW) | 4160 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 3.2 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 3.45 |
| Minimum Operating Supply Voltage (V) | 3.15 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Differential Output Voltage (V) | 0.6 |
| Differential Input Low Threshold Voltage (V) | -0.1(Min) |
| Differential Input High Threshold Voltage (V) | 0.1(Max) |
| Description |
