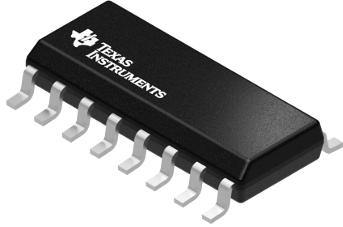

LVDS DS90LV031ATM/NOPB
Texas Instruments
DS90LV031ATM/NOPB
--
Drivers and Interfaces
LVDS
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Function | Driver |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 16 |
| Part Status | Active |
| Package Width | 4(Max) |
| Package Height | 1.5(Max) |
| Package Length | 10(Max) |
| Supplier Package | SOIC |
| Input Signal Type | LVCMOS|LVTTL |
| Number of Drivers | 4 |
| Number of Receivers | 0 |
| Standard Package Name | SOP |
| Maximum Input Current (uA) | 10 |
| Supplier Temperature Grade | Industrial |
| Number of Elements per Chip | 4 |
| Transmission Data Rate (Mbps) | 400 |
| Maximum Power Dissipation (mW) | 1088 |
| Maximum Operating Frequency (MHz) | 250(Typ) |
| Minimum Operating Frequency (MHz) | 200 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 2 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 3.6 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Maximum Differential Output Voltage (V) | 0.45 |
| Description |
