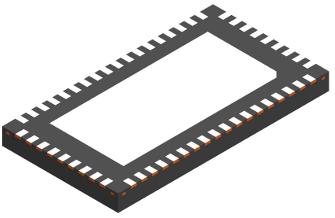

LVDS DS100MB203SQE/NOPB
Texas Instruments
DS100MB203SQE/NOPB
--
Drivers and Interfaces
LVDS
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Function | Buffer |
| Mounting | Surface Mount |
| ECCN (US) | 5A991b. |
| Packaging | Tape and Reel |
| Pin Count | 54 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 54 |
| Part Status | Active |
| Package Width | 5.6(Max) |
| Package Height | 0.8(Max) |
| Package Length | 10.1(Max) |
| Supplier Package | WQFN EP |
| Input Signal Type | CML|LVCMOS |
| Number of Drivers | 2 |
| Standard Package Name | QFN |
| Maximum Input Current (uA) | 15 |
| Transmission Data Rate (Mbps) | 10312.5 |
| Maximum Power Dissipation (mW) | 684 |
| Maximum Operating Frequency (MHz) | 0.52 |
| Minimum Operating Frequency (MHz) | 0.28 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 2.625|3.6 |
| Minimum Operating Supply Voltage (V) | 2.375|3 |
| Typical Operating Supply Voltage (V) | 2.5|3.3 |
| Description |
