LED Drivers TPIC2810D
Texas Instruments

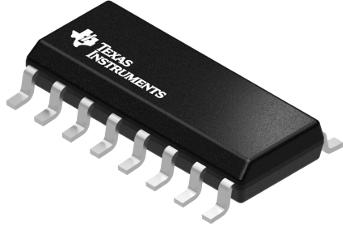

TPIC2810D
--
Drivers and Interfaces
LED Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 16 |
| Automotive | No |
| Lead Shape | Gull-wing |
| PCB changed | 16 |
| Part Status | Active |
| Package Width | 4(Max) |
| Package Height | 1.5(Max) |
| Package Length | 10(Max) |
| Supplier Package | SOIC |
| Output Voltage (V) | 40(Max) |
| Number of LED Outputs | 8 |
| Standard Package Name | SOP |
| Maximum Supply Current (uA) | 1000 |
| Low Level Output Current (uA) | 13000(Typ) |
| High Level Output Current (uA) | 13000(Typ) |
| Maximum Power Dissipation (mW) | 1087 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3|5 |
| Description |
