LED Drivers TLC5942RHBTG4
Texas Instruments

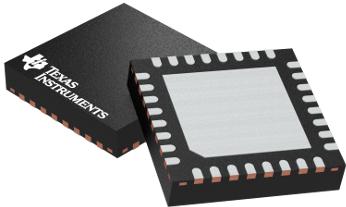

TLC5942RHBTG4
--
Drivers and Interfaces
LED Drivers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 32 |
| Automotive | No |
| Lead Shape | No Lead |
| PCB changed | 32 |
| Part Status | Obsolete |
| Package Width | 5.15(Max) |
| Package Height | 0.95(Max) |
| Package Length | 5.15(Max) |
| Supplier Package | VQFN EP |
| Number of Segments | 16 |
| Output Voltage (V) | 17(Max) |
| Standard Package Name | QFN |
| Maximum Supply Current (uA) | 50000 |
| Low Level Output Current (uA) | 1000 |
| High Level Output Current (uA) | -1000 |
| Maximum Power Dissipation (mW) | 3482 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3|5 |
| Description |
