LED Drivers TLC5940NT
Texas Instruments

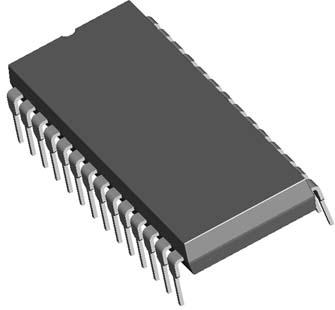

TLC5940NT
--
Driver
LED Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 28 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 28 |
| Part Status | Obsolete |
| Package Width | 7.11(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 36.2(Max) |
| Supplier Package | PDIP |
| Number of Segments | 16 |
| Output Voltage (V) | 17(Max) |
| Standard Package Name | DIP |
| Maximum Supply Current (uA) | 60000 |
| Low Level Output Current (uA) | 1000 |
| High Level Output Current (uA) | -1000 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3|5 |
| Description |
