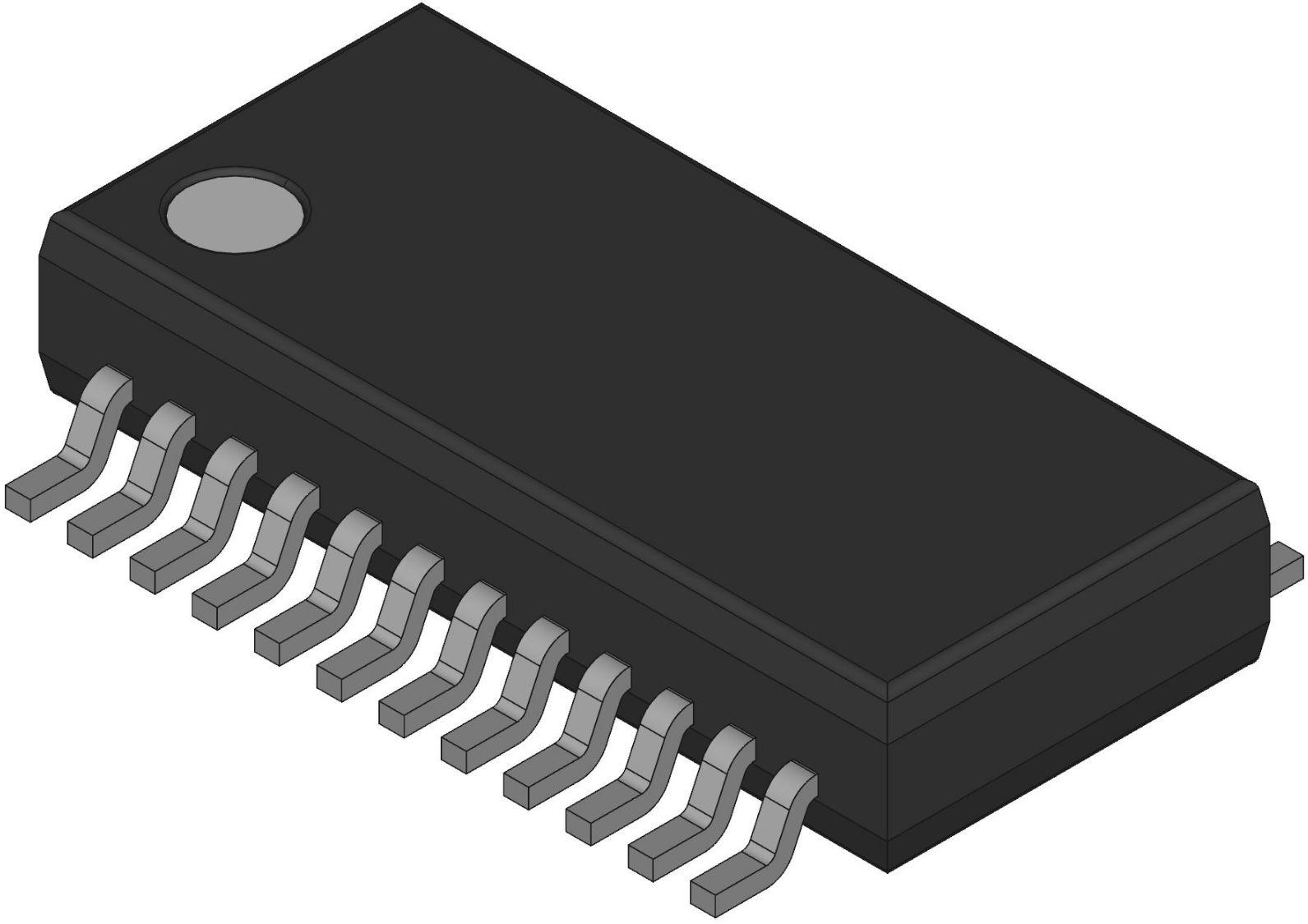

STP16DPP05PTR
STP16DPP05PTR
LED Drivers STP16DPP05PTR
STMicroelectronics
STP16DPP05PTR
--
Drivers and Interfaces
LED Drivers
Specification
Product AttributeAttribute Value
PPAPNo
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count24
AutomotiveNo
Lead ShapeGull-wing
PCB changed24
Part StatusObsolete
Package Width3.91
Package Height1.47
Package Length8.66
Supplier PackageQSOP
Number of Segments16
Output Voltage (V)20(Max)
Standard Package NameSOP
Maximum Supply Current (uA)9500
Low Level Output Current (uA)-1000
High Level Output Current (uA)1000
Maximum Operating Temperature (°C)125
Minimum Operating Temperature (°C)-40
Maximum Operating Supply Voltage (V)5.5
Minimum Operating Supply Voltage (V)3
Typical Operating Supply Voltage (V)3.3|5
Description
LED Driver 16 Segment 9500uA Supply Current 24-Pin QSOP T/R
