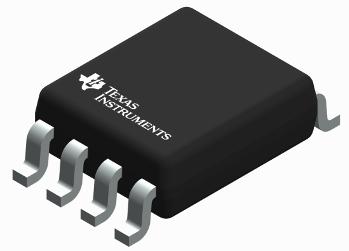

SN74LVC3G04DCUTG4
SN74LVC3G04DCUTG4
Inverters and Schmitt Triggers SN74LVC3G04DCUTG4
Texas Instruments
SN74LVC3G04DCUTG4
--
Standard and Specialty Logic
Inverters and Schmitt Triggers
Specification
Product AttributeAttribute Value
PPAPNo
SVHCYes
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count8
AutomotiveNo
Lead ShapeGull-wing
Output TypePush-Pull
PCB changed8
Part StatusObsolete
Logic FamilyLVC
Package Width2.4(Max)
Logic FunctionInverter
Package Height0.8(Max)
Package Length2.1(Max)
Supplier PackageVSSOP
Process TechnologyCMOS
Supplier Temperature GradeCommercial
Number of Elements per Chip3
Maximum Quiescent Current (uA)10
Maximum Operating Temperature (°C)125
Minimum Operating Temperature (°C)-40
Absolute Propagation Delay Time (ns)8.9
Maximum Low Level Output Voltage (V)0.75
Maximum Operating Supply Voltage (V)5.5
Minimum Operating Supply Voltage (V)1.65
Typical Operating Supply Voltage (V)1.8|2.5|3.3|5
Maximum Low Level Output Current (mA)32
Minimum High Level Output Voltage (V)1.2
Propagation Delay Test Condition (pF)50
Maximum High Level Output Current (mA)-32
Maximum Propagation Delay Time @ Maximum CL (ns)5.1@3.3V|3.8@5V
Description
Inverter 3-Element CMOS 8-Pin VSSOP T/R
