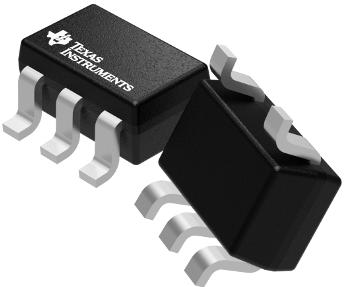

SN74LVC1G14QDCKRQ1
SN74LVC1G14QDCKRQ1
Inverters and Schmitt Triggers SN74LVC1G14QDCKRQ1
Texas Instruments
SN74LVC1G14QDCKRQ1
--
Standard and Specialty Logic
Inverters and Schmitt Triggers
Specification
Product AttributeAttribute Value
HTS8542330001
PPAPYes
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count5
AutomotiveYes
Lead ShapeGull-wing
Output TypePush-Pull
PCB changed5
Part StatusActive
Logic FamilyLVC
Package Width1.4(Max)
Logic FunctionInverter Schmitt Trigger
Package Height1(Max)
Package Length2.15(Max)
Supplier PackageSC-70
Process TechnologyCMOS
Standard Package NameSOT-323
Supplier Temperature GradeAutomotive
Number of Elements per Chip1
Maximum Quiescent Current (uA)10
Maximum Operating Temperature (°C)125
Minimum Operating Temperature (°C)-40
Absolute Propagation Delay Time (ns)13
Maximum Operating Supply Voltage (V)5.5
Minimum Operating Supply Voltage (V)1.65
Typical Operating Supply Voltage (V)1.8|2.5|3.3|5
Maximum Low Level Output Current (mA)32
Propagation Delay Test Condition (pF)50
Maximum High Level Output Current (mA)-32
Maximum Propagation Delay Time @ Maximum CL (ns)13@1.65V to 1.95V|8@2.3V to 2.7V|6.5@3V to 3.6V|6@4.5V to 5.5V
Description
Inverter Schmitt Trigger 1-Element CMOS Automotive 5-Pin SC-70 T/R
