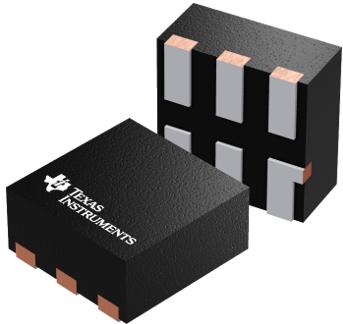

Inverters and Schmitt Triggers SN74LVC1G14DSFR
Texas Instruments
SN74LVC1G14DSFR
--
Standard and Specialty Logic
Inverters and Schmitt Triggers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 6 |
| Automotive | No |
| Lead Shape | No Lead |
| Output Type | Push-Pull |
| PCB changed | 6 |
| Part Status | Active |
| Logic Family | LVC |
| Package Width | 1.05(Max) |
| Logic Function | Inverter Schmitt Trigger |
| Package Height | 0.35(Max) |
| Package Length | 1.05(Max) |
| Supplier Package | X2SON |
| Process Technology | CMOS |
| Standard Package Name | SON |
| Number of Elements per Chip | 1 |
| Maximum Quiescent Current (uA) | 10 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 11 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 1.65 |
| Typical Operating Supply Voltage (V) | 5|3.3|2.5|1.8 |
| Maximum Low Level Output Current (mA) | 32 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -32 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 5@4.5V to 5.5V|5.5@3V to 3.6V |
| Description |
