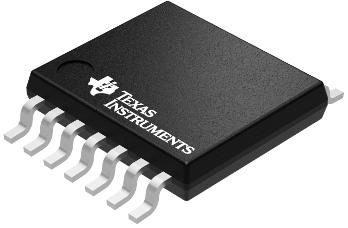

Inverters and Schmitt Triggers SN74HC14PWRE4
Texas Instruments
SN74HC14PWRE4
--
Standard and Specialty Logic
Inverters and Schmitt Triggers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Push-Pull |
| PCB changed | 14 |
| Part Status | Obsolete |
| Logic Family | HC |
| Package Width | 4.5(Max) |
| Logic Function | Inverter Schmitt Trigger |
| Package Height | 1.05(Max) |
| Package Length | 5.1(Max) |
| Supplier Package | TSSOP |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Number of Elements per Chip | 6 |
| Maximum Quiescent Current (uA) | 2 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 155 |
| Maximum Operating Supply Voltage (V) | 6 |
| Minimum Operating Supply Voltage (V) | 2 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 5.2 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -5.2 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 125@2V|25@4.5V|21@6V |
| Description |
