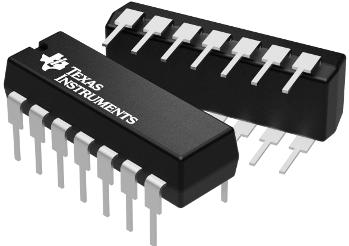

Inverters and Schmitt Triggers SN7405N
Texas Instruments
SN7405N
--
Standard and Specialty Logic
Inverters and Schmitt Triggers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Through Hole |
| Output Type | Open Collector |
| PCB changed | 14 |
| Part Status | Active |
| Logic Family | TTL |
| Package Width | 6.6(Max) |
| Logic Function | Inverter |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 19.69(Max) |
| Supplier Package | PDIP |
| Process Technology | Bipolar |
| Standard Package Name | DIP |
| Supplier Temperature Grade | Commercial |
| Number of Elements per Chip | 6 |
| Maximum Operating Temperature (°C) | 70 |
| Minimum Operating Temperature (°C) | 0 |
| Absolute Propagation Delay Time (ns) | 55 |
| Maximum Operating Supply Voltage (V) | 5.25 |
| Minimum Operating Supply Voltage (V) | 4.75 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 16 |
| Propagation Delay Test Condition (pF) | 15 |
| Maximum High Level Output Current (mA) | -0.25 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 55@5V |
