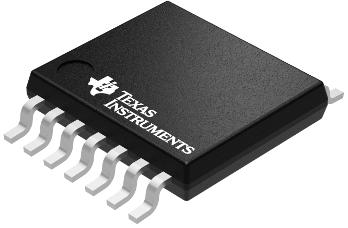

Inverters and Schmitt Triggers CD4069UBPWR
Texas Instruments
CD4069UBPWR
--
Standard and Specialty Logic
Inverters and Schmitt Triggers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| SVHC | Yes |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Push-Pull |
| PCB changed | 14 |
| Part Status | Active |
| Logic Family | CD4000 |
| Package Width | 4.5(Max) |
| Logic Function | Inverter |
| Package Height | 1.05(Max) |
| Package Length | 5.1(Max) |
| Supplier Package | TSSOP |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Number of Elements per Chip | 6 |
| Maximum Quiescent Current (uA) | 5 |
| Typical Quiescent Current (uA) | 0.02 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Absolute Propagation Delay Time (ns) | 110 |
| Maximum Operating Supply Voltage (V) | 18 |
| Minimum Operating Supply Voltage (V) | 3 |
| Typical Operating Supply Voltage (V) | 3.3|5|9|12|15 |
| Maximum Low Level Output Current (mA) | 4.2(Min) |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -4.2(Min) |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 110@5V|60@10V|50@15V |
| Description |
