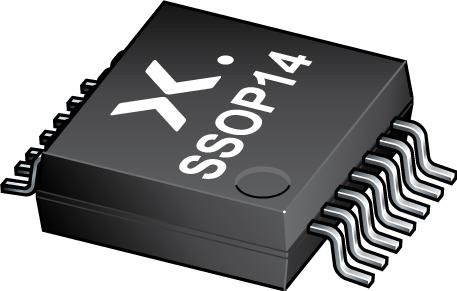

74HC14DB,118
74HC14DB,118
Inverters and Schmitt Triggers 74HC14DB,118
Nexperia
74HC14DB,118
--
Standard and Specialty Logic
Inverters and Schmitt Triggers
74HC14DB,118.pdf
Specification
Product AttributeAttribute Value
HTS8542330001
PPAPNo
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count14
AutomotiveNo
Output TypeSchmitt Trigger
PCB changed14
Part StatusObsolete
Logic FamilyHC
Package Width5.4(Max)
Logic FunctionInverter Schmitt Trigger
Package Height1.8(Max)
Package Length6.4(Max)
Supplier PackageSSOP
Process TechnologyCMOS
Number of Elements per Chip6
Maximum Quiescent Current (uA)2
Maximum Operating Temperature (°C)125
Minimum Operating Temperature (°C)-40
Absolute Propagation Delay Time (ns)190
Maximum Operating Supply Voltage (V)6
Minimum Operating Supply Voltage (V)2
Typical Operating Supply Voltage (V)5
Maximum Low Level Output Current (mA)5.2
Propagation Delay Test Condition (pF)50
Maximum High Level Output Current (mA)-5.2
Maximum Propagation Delay Time @ Maximum CL (ns)125@2V|25@4.5V|21@6V
Description
Inverter Schmitt Trigger 6-Element CMOS 14-Pin SSOP T/R
