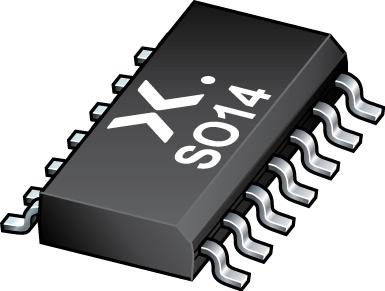

Inverters and Schmitt Triggers 74AHCT14D,118
Nexperia
74AHCT14D,118
--
Standard and Specialty Logic
Inverters and Schmitt Triggers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 14 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Output Type | Schmitt Trigger |
| PCB changed | 14 |
| Part Status | Active |
| Logic Family | AHCT |
| Package Width | 4(Max) |
| Logic Function | Inverter Schmitt Trigger |
| Package Height | 1.45(Max) |
| Package Length | 8.75(Max) |
| Supplier Package | SO |
| Process Technology | CMOS |
| Standard Package Name | SOP |
| Number of Elements per Chip | 6 |
| Maximum Quiescent Current (uA) | 2 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Absolute Propagation Delay Time (ns) | 10 |
| Maximum Low Level Output Voltage (V) | 0.36 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Operating Supply Voltage (V) | 5 |
| Maximum Low Level Output Current (mA) | 8 |
| Minimum High Level Output Voltage (V) | 3.94 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -8 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 8@4.5V to 5.5V |
| Description |
