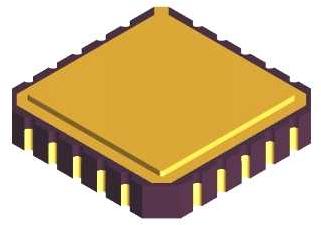

Inverters and Schmitt Triggers 5962-9680301Q2A
Texas Instruments
5962-9680301Q2A
--
Standard and Specialty Logic
Inverters and Schmitt Triggers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | No Lead |
| Output Type | Push-Pull |
| PCB changed | 20 |
| Part Status | Obsolete |
| Logic Family | AHC |
| Package Width | 9.09(Max) |
| Logic Function | Inverter |
| Package Height | 2.03(Max) |
| Package Length | 9.09(Max) |
| Supplier Package | CLLCC |
| Process Technology | CMOS |
| Standard Package Name | LLCC |
| Supplier Temperature Grade | Military |
| Number of Elements per Chip | 6 |
| Maximum Quiescent Current (uA) | 2 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Absolute Propagation Delay Time (ns) | 12 |
| Maximum Operating Supply Voltage (V) | 5.5 |
| Minimum Operating Supply Voltage (V) | 2 |
| Typical Operating Supply Voltage (V) | 2.5|3.3|5 |
| Maximum Low Level Output Current (mA) | 8 |
| Propagation Delay Test Condition (pF) | 50 |
| Maximum High Level Output Current (mA) | -8 |
| Maximum Propagation Delay Time @ Maximum CL (ns) | 10.6@3.3V|7@5V |
