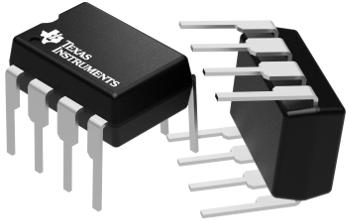

Instrumentation Amplifiers INA131BPG4
Texas Instruments
INA131BPG4
--
Amplifier
Instrumentation Amplifiers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 6.6(Max) |
| Package Height | 5.08(Max) - 0.51(Min) |
| Package Length | 10.16(Max) |
| Supplier Package | PDIP |
| Minimum CMRR (dB) | 110 |
| Power Supply Type | Single|Dual |
| Standard Package Name | DIP |
| Minimum CMRR Range (dB) | 105 to 120 |
| Number of Channels per Chip | 1 |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Bias Current (uA) | 0.002@±15V |
| Maximum Input Resistance (MOhm) | 10000@±15V |
| Minimum Dual Supply Voltage (V) | ±2.25 |
| Typical Dual Supply Voltage (V) | ±15 |
| Maximum Supply Voltage Range (V) | 30 to 50 |
| Maximum Input Offset Voltage (mV) | 0.05@±15V |
| Maximum Single Supply Voltage (V) | 36 |
| Minimum Single Supply Voltage (V) | 4.5 |
| Typical Single Supply Voltage (V) | 5|9|12|15|18|24|28 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | ±18|36 |
| Description |
