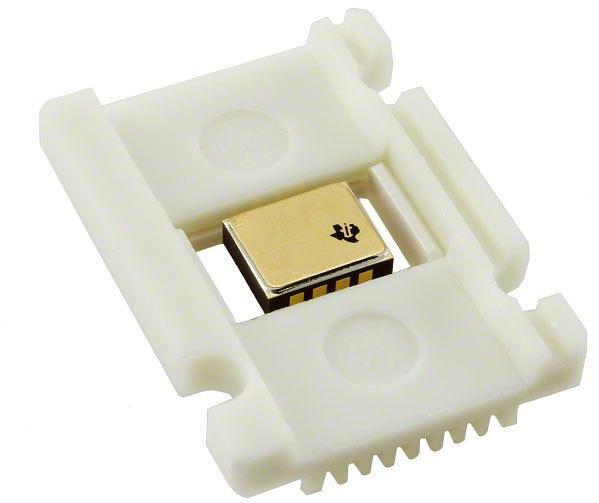

Instrumentation Amplifiers INA129SHKJ
Texas Instruments
INA129SHKJ
--
Amplifier
Instrumentation Amplifiers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.33.00.01 |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Flat |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 5.89(Max) |
| Package Height | 1.98(Max) |
| Package Length | 7.34(Max) |
| Supplier Package | CFPAK |
| Minimum CMRR (dB) | 58 |
| Power Supply Type | Dual |
| Standard Package Name | FPAK |
| Minimum CMRR Range (dB) | <60 |
| Maximum Voltage Gain (dB) | 80 |
| Number of Channels per Chip | 1 |
| Maximum Dual Supply Voltage (V) | ±18 |
| Maximum Input Bias Current (uA) | 0.05(Typ)@210C |
| Maximum Input Resistance (MOhm) | 10000(Typ)@210C |
| Maximum Voltage Gain Range (dB) | 75 to 100 |
| Minimum Dual Supply Voltage (V) | ±2.25 |
| Typical Dual Supply Voltage (V) | ±15 |
| Maximum Supply Voltage Range (V) | 30 to 50 |
| Maximum Input Offset Voltage (mV) | 0.125 |
| Maximum Operating Temperature (°C) | 210 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | ±18 |
| Description |
