MPX1D2213L101
MPX1D2213L101

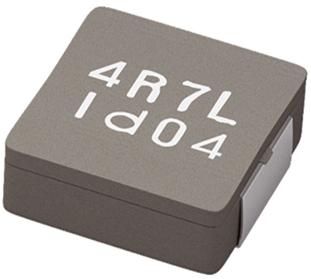

Inductor Surface Mount MPX1D2213L101
KEMET
MPX1D2213L101
--
Magnetics
Inductor Surface Mount
Specification
Product AttributeAttribute Value
HTS8504.50.80.00
PPAPNo
TypePower
EU RoHSCompliant
ECCN (US)EAR99
Tolerance20%
AutomotiveNo
TechnologyWirewound
Part StatusActive
Core MaterialMetal
Inductance (H)100u
Protection StyleShielded
Product Depth (mm)22.5
Number of Terminals2
Product Height (mm)13
Product Length (mm)23
Maximum DC Current (A)10
Maximum DC Resistance (Ohm)0.0474
Inductance Test Frequency (Hz)100K
Maximum Saturation Current (A)10.5
Maximum Operating Temperature (°C)155
Minimum Operating Temperature (°C)-55
Minimum Self Resonant Frequency (Hz)1.6M
Inductance Decrease Percentage @ Isat (%)30
Description
Inductor Power Shielded Wirewound 100uH 20% 100KHz Metal 10A 0.0474Ohm DCR T/R
