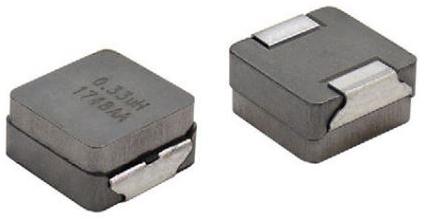

Inductor Surface Mount IHLP6767DZERR22M01
Vishay
IHLP6767DZERR22M01
--
Magnetics
Inductor Surface Mount
Specification
| Product Attribute | Attribute Value |
| HTS | 8504.50.80.00 |
| PPAP | No |
| Type | Power Choke |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| Case Size | 6767 |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Tolerance | 20% |
| Automotive | No |
| Technology | Wirewound |
| Part Status | Active |
| Core Material | Powdered Iron |
| Inductance (H) | 0.22u |
| Protection Style | Shielded |
| Product Depth (mm) | 17.15 |
| Number of Terminals | 2 |
| Product Height (mm) | 4 |
| Product Length (mm) | 17.28 |
| Maximum DC Current (A) | 75(Typ) |
| Maximum DC Resistance (Ohm) | 0.00088 |
| Inductance Test Frequency (Hz) | 100K |
| Maximum Saturation Current (A) | 92(Typ) |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Inductance Decrease Percentage @ Isat (%) | 20 |
| Description |
