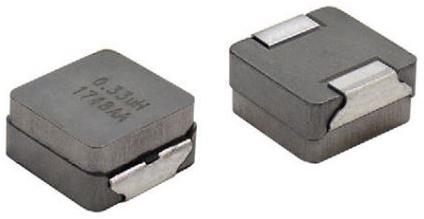

Inductor Surface Mount IHLP4040EDER750M5A
Vishay
IHLP4040EDER750M5A
--
Magnetics
Inductor Surface Mount
Specification
| Product Attribute | Attribute Value |
| HTS | 8504.50.80.00 |
| PPAP | Unknown |
| Type | Power Choke |
| Mounting | Surface Mount |
| Case Size | 4040 |
| ECCN (US) | EAR99 |
| Tolerance | 20% |
| Automotive | Yes |
| Technology | Wirewound |
| Part Status | Active |
| Core Material | Powdered Iron |
| Inductance (H) | 75u |
| Protection Style | Shielded |
| Product Depth (mm) | 10.3 |
| Number of Terminals | 2 |
| Product Height (mm) | 5.4 |
| Product Length (mm) | 11.5 |
| Maximum DC Current (A) | 2.74(Typ) |
| Maximum DC Resistance (Ohm) | 0.2142 |
| Inductance Test Frequency (Hz) | 100K |
| Maximum Saturation Current (A) | 3.51(Typ) |
| Maximum Operating Temperature (°C) | 155 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Self Resonant Frequency (Hz) | 3.53M(Typ) |
| Inductance Decrease Percentage @ Isat (%) | 20 |
| Description |
