IHLP1212ABEVR22M01
IHLP1212ABEVR22M01

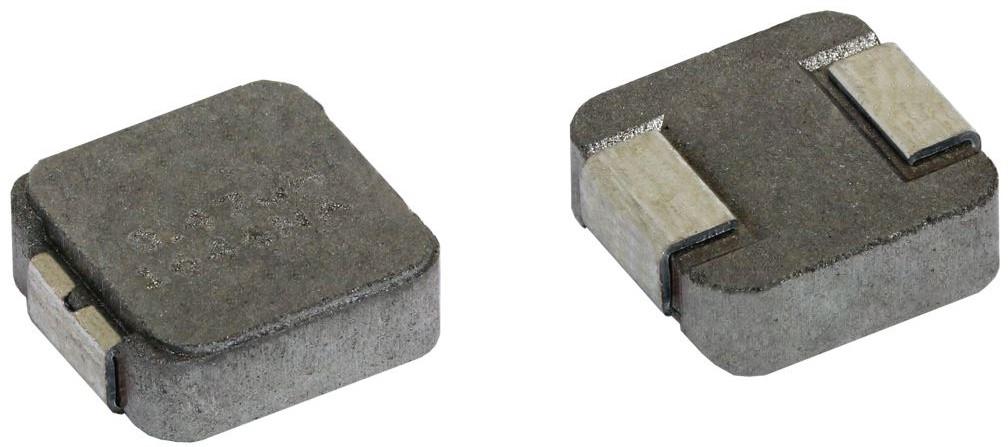

Inductor Surface Mount IHLP1212ABEVR22M01
Vishay
IHLP1212ABEVR22M01
--
Magnetics
Inductor Surface Mount
Specification
Product AttributeAttribute Value
HTS8504.50.80.00
PPAPNo
TypePower Choke
MountingSurface Mount
Case Size1212
ECCN (US)EAR99
Tolerance20%
AutomotiveNo
TechnologyWirewound
Core MaterialPowdered Iron
Inductance (H)0.22u
Protection StyleShielded
Product Depth (mm)3.43
Number of Terminals2
Product Height (mm)1.2
Product Length (mm)3.81
Maximum DC Current (A)7.93(Typ)
Maximum DC Resistance (Ohm)0.01321
Inductance Test Frequency (Hz)100K
Maximum Saturation Current (A)10.23(Typ)
Maximum Operating Temperature (°C)125
Minimum Operating Temperature (°C)-55
Minimum Self Resonant Frequency (Hz)251M(Typ)
Inductance Decrease Percentage @ Isat (%)20
Description
Power Choke Shielded Wirewound 0.22uH 20% 100KHz Powdered Iron 7.93A 0.01321Ohm DCR 1212
