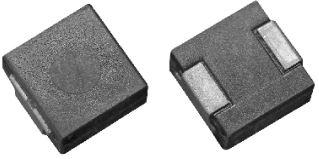

Inductor Surface Mount IHLM2525CZRZR33ML1
Vishay
IHLM2525CZRZR33ML1
--
Magnetics
Inductor Surface Mount
Specification
| Product Attribute | Attribute Value |
| HTS | 8504.50.80.00 |
| PPAP | No |
| Type | Power |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| Case Size | 2525 |
| ECCN (US) | EAR99 |
| Tolerance | 20% |
| Automotive | No |
| Technology | Wirewound |
| Part Status | Active |
| Inductance (H) | 0.33u |
| Protection Style | Shielded |
| Product Depth (mm) | 6.72 |
| Number of Terminals | 2 |
| Product Height (mm) | 3 |
| Product Length (mm) | 7.24 |
| Maximum DC Current (A) | 20(Typ) |
| Maximum DC Resistance (Ohm) | 0.0039 |
| Inductance Test Frequency (Hz) | 100K |
| Maximum Saturation Current (A) | 30(Typ) |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Self Resonant Frequency (Hz) | 100M(Typ) |
| Inductance Decrease Percentage @ Isat (%) | 20 |
| Description |
