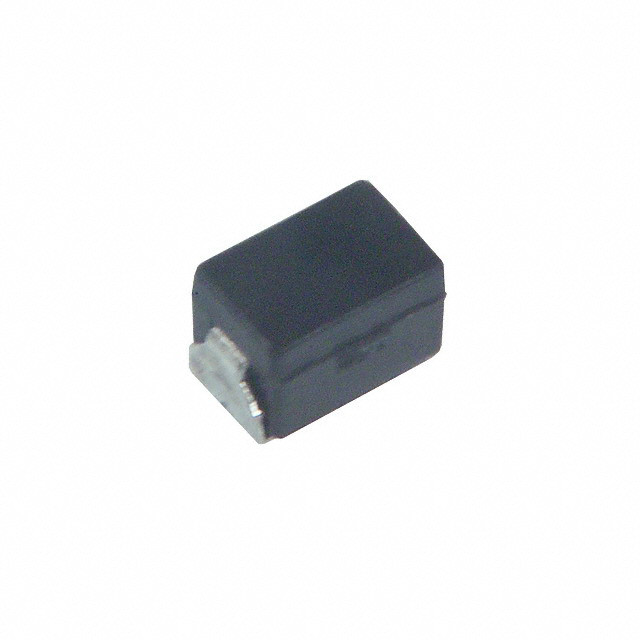

Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| Type | General Purpose Chip |
| EU RoHS | Compliant with Exemption |
| Mounting | Surface Mount |
| Case Size | 1812 |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Tolerance | 10% |
| Automotive | No |
| Technology | Wirewound |
| Part Status | Obsolete |
| Core Material | Ferrite |
| Inductance (H) | 15u |
| Protection Style | Molded |
| Product Depth (mm) | 3.4 |
| Number of Terminals | 2 |
| Product Height (mm) | 3.4 |
| Product Length (mm) | 4.8 |
| Maximum DC Current (A) | 0.215 |
| Minimum Quality Factor | 50 |
| SVHC Exceeds Threshold | Yes |
| Maximum DC Resistance (Ohm) | 2.1 |
| Quality Test Frequency (Hz) | 5M |
| Inductance Test Frequency (Hz) | 1M |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Self Resonant Frequency (Hz) | 18M |
| Description |
