Specification
| Product Attribute | Attribute Value |
| HTS | 8504.50.80.00 |
| PPAP | No |

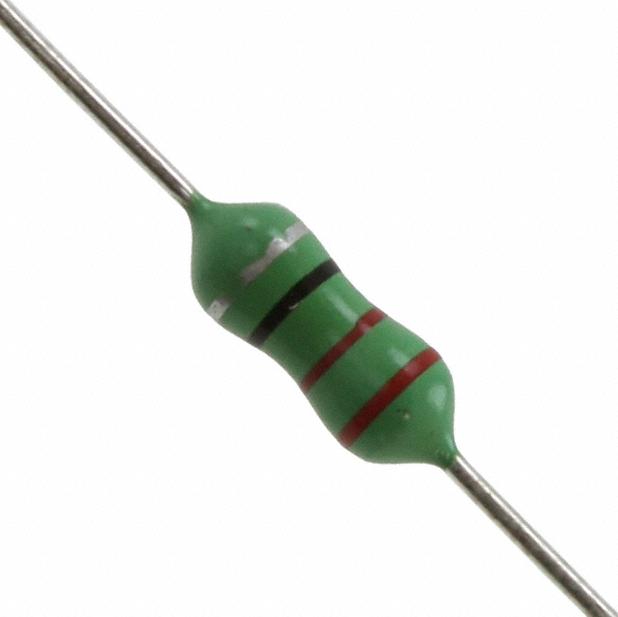

| Type | RF Choke |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Tolerance | 5% |
| Automotive | No |
| Lead Style | Axial |
| Technology | Bobbin Core |
| Part Status | Unconfirmed |
| Core Material | Ferrite |
| Inductance (H) | 1000u |
| Number of Terminals | 2 |
| Product Length (mm) | 10.41 |
| Product Diameter (mm) | 3.99 |
| Maximum DC Current (A) | 0.1 |
| Minimum Quality Factor | 50 |
| Maximum DC Resistance (Ohm) | 14 |
| Quality Test Frequency (Hz) | 796K |
| Inductance Test Frequency (Hz) | 796K |
| Maximum Operating Temperature (°C) | 105 |
| Minimum Operating Temperature (°C) | -55 |
| Minimum Self Resonant Frequency (Hz) | 1.4M |
| Description |
