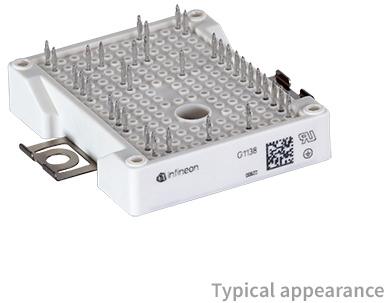

IGBT Modules FP25R12W2T4B11BOMA1
Infineon
FP25R12W2T4B11BOMA1
--
Diodes, Transistors and Thyristors
IGBT Modules
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant with Exemption |
| Mounting | Screw |
| ECCN (US) | EAR99 |
| Packaging | Tray |
| Pin Count | 23 |
| Automotive | No |
| PCB changed | 23 |
| Part Status | Active |
| Channel Type | N |
| Configuration | Array 7 |
| Package Width | 56.7 |
| Package Height | 12 |
| Package Length | 62.8 |
| Supplier Package | EASY2B-2 |
| Maximum Power Dissipation (mW) | 175000 |
| Maximum Gate Emitter Voltage (V) | ±20 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Collector-Emitter Voltage (V) | 1200 |
| Maximum Continuous Collector Current (A) | 39 |
| Maximum Gate Emitter Leakage Current (uA) | 0.4 |
| Typical Collector Emitter Saturation Voltage (V) | 1.85 |
| Description |
