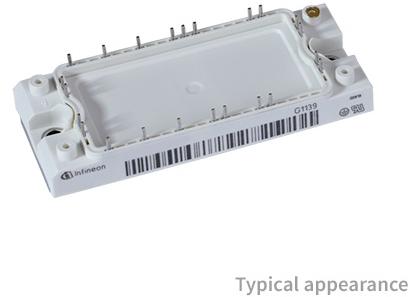

IGBT Modules FP25R12KE3BOSA1
Infineon
FP25R12KE3BOSA1
--
Diodes, Transistors and Thyristors
IGBT Modules
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| EU RoHS | Compliant with Exemption |
| Mounting | Screw |
| ECCN (US) | EAR99 |
| Packaging | Tray |
| Pin Count | 24 |
| Automotive | No |
| PCB changed | 24 |
| Part Status | NRND |
| Channel Type | N |
| Configuration | Hex |
| Package Width | 45 |
| Package Height | 17 |
| Package Length | 107.5 |
| Supplier Package | ECONO2-5 |
| Maximum Power Dissipation (mW) | 155000 |
| Maximum Gate Emitter Voltage (V) | ±20 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Collector-Emitter Voltage (V) | 1200 |
| Maximum Continuous Collector Current (A) | 40 |
| Maximum Gate Emitter Leakage Current (uA) | 0.1 |
| Typical Collector Emitter Saturation Voltage (V) | 1.7 |
| Description |
