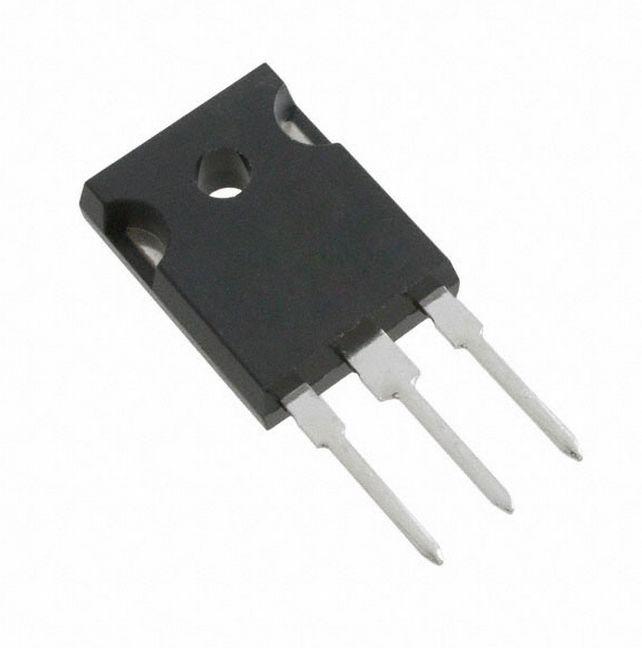

IGBT Chip IHW20N135R3
Infineon
IHW20N135R3
--
Diodes, Transistors and Thyristors
IGBT Chip
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 3 |
| Automotive | No |
| Lead Shape | Through Hole |
| PCB changed | 3 |
| Part Status | Obsolete |
| Channel Type | N |
| Configuration | Single |
| Package Width | 5.03 |
| Package Height | 20.9 |
| Package Length | 15.9 |
| Supplier Package | TO-247 |
| Standard Package Name | TO-247 |
| Maximum Power Dissipation (mW) | 310000 |
| Maximum Gate Emitter Voltage (V) | ±20 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Collector-Emitter Voltage (V) | 1350 |
| Maximum Continuous Collector Current (A) | 40 |
| Maximum Gate Emitter Leakage Current (uA) | 0.1 |
| Typical Collector Emitter Saturation Voltage (V) | 1.6 |
| Description |
