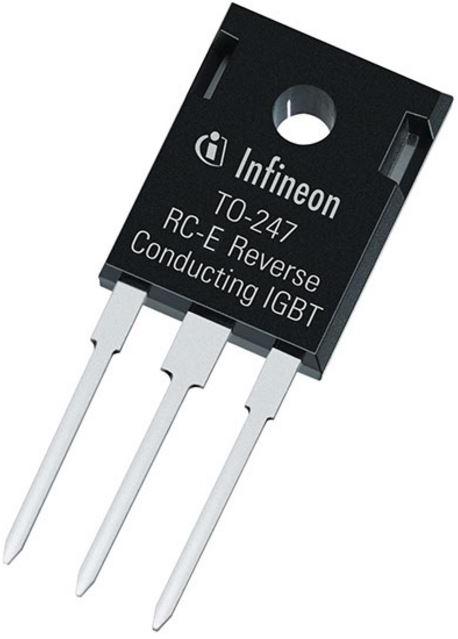

IGBT Chip IHW15N120E1
Infineon
IHW15N120E1
--
Diodes, Transistors and Thyristors
IGBT Chip
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 3 |
| Automotive | No |
| Lead Shape | Through Hole |
| Technology | Trench Stop |
| PCB changed | 3 |
| Part Status | Unconfirmed |
| Channel Type | N |
| Configuration | Single |
| Package Width | 5.21(Max) |
| Package Height | 21.1(Max) |
| Package Length | 16.13(Max) |
| Supplier Package | TO-247 |
| Standard Package Name | TO-247 |
| Maximum Power Dissipation (mW) | 156000 |
| Maximum Gate Emitter Voltage (V) | ±20 |
| Maximum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Collector-Emitter Voltage (V) | 1200 |
| Maximum Continuous Collector Current (A) | 30 |
| Maximum Gate Emitter Leakage Current (uA) | 0.1 |
| Typical Collector Emitter Saturation Voltage (V) | 1.5 |
| Description |
