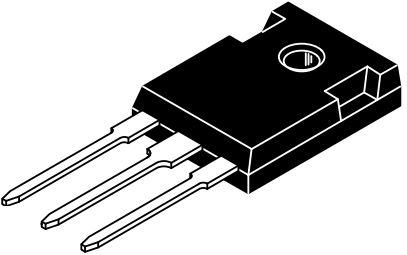

IGBT Chip AFGHL50T65SQD
onsemi
AFGHL50T65SQD
--
Diodes, Transistors and Thyristors
IGBT Chip
Specification
| Product Attribute | Attribute Value |
| Tab | Tab |
| PPAP | Yes |
| SVHC | Yes |
| EU RoHS | Compliant with Exemption |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Rail |
| Pin Count | 3 |
| Automotive | Yes |
| Technology | Trench|Field Stop |
| PCB changed | 3 |
| Part Status | Active |
| Channel Type | N |
| Configuration | Single |
| Package Width | 4.7 |
| Package Height | 20.57 |
| Package Length | 15.62 |
| Supplier Package | TO-247 |
| SVHC Exceeds Threshold | Yes |
| Supplier Temperature Grade | Automotive |
| Maximum Power Dissipation (mW) | 268000 |
| Maximum Gate Emitter Voltage (V) | ±20 |
| Maximum Operating Temperature (°C) | 175 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Collector-Emitter Voltage (V) | 650 |
| Maximum Continuous Collector Current (A) | 80 |
| Maximum Gate Emitter Leakage Current (uA) | 0.4 |
| Typical Collector Emitter Saturation Voltage (V) | 1.6 |
| Description |
