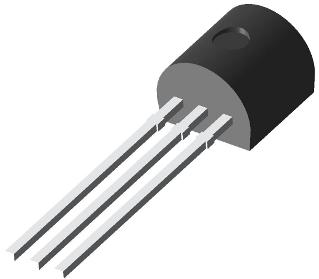

Hall Effect Sensors PDRV5013BCQLPG
Texas Instruments
PDRV5013BCQLPG
--
Sensor
Hall Effect Sensors
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Mounting | Through Hole |
| Packaging | Tape and Reel |
| Pin Count | 3 |
| Automotive | No |
| Lead Shape | Formed |
| PCB changed | 3 |
| Part Status | Unconfirmed |
| Magnetic Type | Bipolar Latch |
| Package Width | 1.62(Max) |
| Package Height | 3.25(Max) |
| Package Length | 4.1(Max) |
| Supplier Package | TO-92 |
| Standard Package Name | TO-92 |
| Module/IC Classification | IC |
| Maximum Supply Current (uA) | 2700(Typ) |
| Typical Output Fall Time (us) | 0.031 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 38 |
| Minimum Operating Supply Voltage (V) | 2.5 |
| Typical Operating Supply Voltage (V) | 3.3|5|9|18|24|15|12 |
| Typical Magnetic Sensor Hysteresis (Gs) | 240 |
| Minimum Magnetic Sensor Release Point (Gs) | -180 |
| Maximum Magnetic Sensor Operating Point (Gs) | 180 |
| Description |
