Gate and Power Drivers UCC27201AQDMKRQ1
Texas Instruments

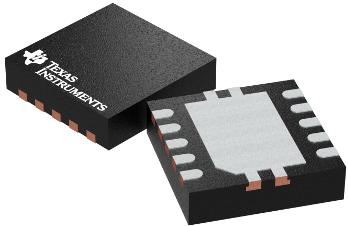

UCC27201AQDMKRQ1
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | Yes |
| Type | MOSFET |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 10 |
| Automotive | Yes |
| Lead Shape | No Lead |
| Bridge Type | Half Bridge|Full Bridge |
| Driver Type | Low Side|High Side |
| PCB changed | 10 |
| Part Status | Active |
| Package Width | 4.1(Max) |
| Latch-Up Proof | No |
| Package Height | 0.95(Max) |
| Package Length | 4.1(Max) |
| Special Features | Undervoltage Protection |
| Supplier Package | VSON EP |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Driver Configuration | Non-Inverting |
| Standard Package Name | SON |
| Maximum Fall Time (ns) | 300(Typ) |
| Maximum Rise Time (ns) | 350(Typ) |
| Peak Output Current (A) | 3 |
| Input Logic Compatibility | TTL |
| Supplier Temperature Grade | Automotive |
| Maximum Supply Current (mA) | 5.5 |
| High and Low Sides Dependency | Synchronous |
| Maximum Power Dissipation (mW) | 2600 |
| Maximum Operating Frequency (kHz) | 1000(Min) |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time (ns) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 17 |
| Minimum Operating Supply Voltage (V) | 8 |
| Typical Operating Supply Voltage (V) | 12 |
| Typical Input Low Threshold Voltage (V) | 1.6 |
| Typical Input High Threshold Voltage (V) | 1.7 |
| Description |
