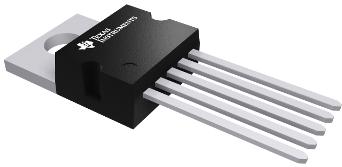

Gate and Power Drivers UC3710TG3
Texas Instruments
UC3710TG3
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| Tab | Tab |
| PPAP | No |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 5 |
| Automotive | No |
| Driver Type | High Speed |
| PCB changed | 5 |
| Part Status | Active |
| Package Width | 4.83(Max) |
| Package Height | 9.25(Max) |
| Package Length | 10.67(Max) |
| Special Features | Undervoltage Lockout|Thermal Shutdown Protection |
| Supplier Package | TO-220 |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Driver Configuration | Non-Inverting|Inverting |
| Standard Package Name | TO-220 |
| Maximum Fall Time (ns) | 80 |
| Maximum Rise Time (ns) | 70 |
| Peak Output Current (A) | 6 |
| Input Logic Compatibility | CMOS |
| Maximum Supply Current (mA) | 35 |
| Maximum Power Dissipation (mW) | 3000 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Propagation Delay Time (ns) | 30 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | 18 |
| Minimum Operating Supply Voltage (V) | 4.7 |
| Typical Input Low Threshold Voltage (V) | 4.1 |
| Typical Input High Threshold Voltage (V) | 4.4 |
| Description |
