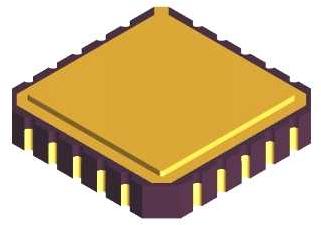

Gate and Power Drivers UC1707L
Texas Instruments
UC1707L
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | No |
| EU RoHS | Not Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 20 |
| Automotive | No |
| Lead Shape | No Lead |
| Driver Type | High Speed |
| PCB changed | 20 |
| Part Status | Active |
| Package Width | 9.09(Max) |
| Package Height | 2.03(Max) |
| Package Length | 9.09(Max) |
| Special Features | Thermal Shutdown Protection |
| Supplier Package | CLLCC |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Driver Configuration | Inverting|Non-Inverting |
| Standard Package Name | LLCC |
| Maximum Fall Time (ns) | 65 |
| Maximum Rise Time (ns) | 60 |
| Peak Output Current (A) | 1.5 |
| Input Logic Compatibility | TTL |
| Maximum Supply Current (mA) | 15 |
| Maximum Operating Temperature (°C) | 125 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Supply Voltage (V) | 40 |
| Minimum Operating Supply Voltage (V) | 5 |
| Typical Input Low Threshold Voltage (V) | 0.8(Max) |
| Typical Input High Threshold Voltage (V) | 2.2(Min) |
| Description |
