SIC772CD-T1-GE3
SIC772CD-T1-GE3
Gate and Power Drivers SIC772CD-T1-GE3
Vishay
SIC772CD-T1-GE3
--
Power Management
Gate and Power Drivers
SIC772CD-T1-GE3.pdf
Specification
Product AttributeAttribute Value
PPAPNo
TypeMOSFET
EU RoHSCompliant
MountingSurface Mount
ECCN (US)EAR99
PackagingTape and Reel
Pin Count40
AutomotiveNo
Lead ShapeNo Lead
Driver TypeHigh Side|Low Side
PCB changed40
Part StatusObsolete
Package Width6
Latch-Up ProofNo
Package Height0.75(Max)
Package Length6
Special FeaturesUndervoltage Lockout

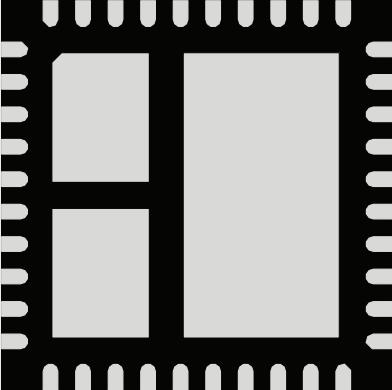

Supplier PackagePowerPAK MLP EP
Number of Drivers1
Number of Outputs1
Driver ConfigurationInverting|Non-Inverting
Standard Package NameQFN
High and Low Sides DependencySynchronous
Maximum Operating Frequency (kHz)1500
Maximum Operating Temperature (°C)125
Maximum Propagation Delay Time (ns)20(Typ)
Minimum Operating Temperature (°C)-40
Maximum Operating Supply Voltage (V)5.5
Minimum Operating Supply Voltage (V)4.5
Typical Operating Supply Voltage (V)5
Description
Driver 1-OUT High Side/Low Side Inv/Non-Inv 40-Pin PowerPAK MLP EP T/R
