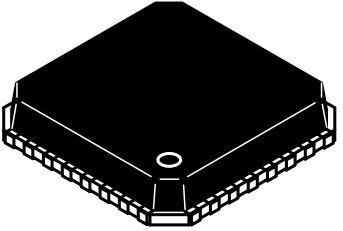

Gate and Power Drivers NCV7544MWTXG
onsemi
NCV7544MWTXG
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542330001 |
| PPAP | Yes |
| Type | MOSFET |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 32 |
| Automotive | Yes |
| Lead Shape | No Lead |
| Bridge Type | Half Bridge |
| Driver Type | High and Low Side |
| PCB changed | 32 |
| Part Status | Active |
| Package Width | 5 |
| Latch-Up Proof | Yes |
| Package Height | 0.85(Max) |
| Package Length | 5 |
| Special Features | Under Voltage Lockout |
| Supplier Package | QFN EP |
| Number of Drivers | 4 |
| Number of Outputs | 4 |
| Standard Package Name | QFN |
| Maximum Fall Time (ns) | 50 |
| Maximum Rise Time (ns) | 50 |
| Output Resistance (Ohm) | 100(Max) |
| Input Logic Compatibility | CMOS|5V |
| Maximum Supply Current (mA) | 5 |
| High and Low Sides Dependency | Synchronous |
| Maximum Operating Frequency (kHz) | 1560 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time (ns) | 750 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 18 |
| Minimum Operating Supply Voltage (V) | 7 |
| Typical Input Low Threshold Voltage (V) | 1.5(Max) |
| Typical Input High Threshold Voltage (V) | 3.5(Min) |
| Description |
