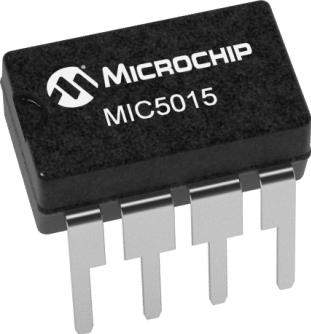

Gate and Power Drivers MIC5015YN
Microchip Technology
MIC5015YN
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | Unknown |
| Type | IGBT|MOSFET |
| EU RoHS | Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Packaging | Tube |
| Pin Count | 8 |
| Automotive | Unknown |
| Lead Shape | Through Hole |
| Driver Type | High Side|Low Side |
| PCB changed | 8 |
| Part Status | Active |
| Package Width | 6.35 |
| Latch-Up Proof | No |
| Package Height | 3.81(Max) |
| Package Length | 9.53 |
| Special Features | Overvoltage Shutdown |
| Supplier Package | PDIP |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Driver Configuration | Inverting |
| Standard Package Name | DIP |
| Peak Output Current (A) | 0.8 |
| Input Logic Compatibility | TTL |
| Maximum Supply Current (mA) | 10 |
| High and Low Sides Dependency | Synchronous |
| Maximum Turn-On Delay Time (ns) | 8000000 |
| Maximum Turn-Off Delay Time (ns) | 30000 |
| Maximum Operating Temperature (°C) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 30 |
| Minimum Operating Supply Voltage (V) | 2.75 |
| Typical Input Low Threshold Voltage (V) | 0.8(Max) |
| Typical Input High Threshold Voltage (V) | 2(Min) |
| Description |
