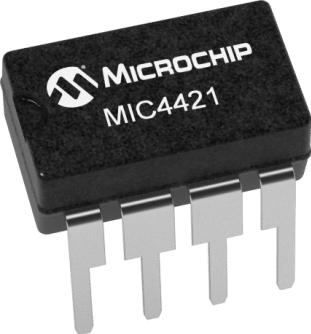

Gate and Power Drivers MIC4421CN
Microchip Technology
MIC4421CN
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| SVHC | Yes |
| Type | IGBT|MOSFET |
| EU RoHS | Not Compliant |
| Mounting | Through Hole |
| ECCN (US) | EAR99 |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | Through Hole |
| Driver Type | Low Side |
| PCB changed | 8 |
| Part Status | Obsolete |
| Package Width | 6.48(Max) |
| Package Height | 3.43(Max) |
| Package Length | 9.65(Max) |
| Supplier Package | PDIP |
| Number of Drivers | 1 |
| Number of Outputs | 1 |
| Process Technology | Bipolar|CMOS|DMOS |
| Driver Configuration | Inverting |
| Standard Package Name | DIP |
| Maximum Fall Time (ns) | 75 |
| Maximum Rise Time (ns) | 75 |
| SVHC Exceeds Threshold | Yes |
| Output Resistance (Ohm) | 0.8 |
| Peak Output Current (A) | 9(Typ) |
| Input Logic Compatibility | CMOS |
| Maximum Supply Current (mA) | 1.5 |
| Maximum Power Dissipation (mW) | 960 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Propagation Delay Time (ns) | 35 |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | 18 |
| Minimum Operating Supply Voltage (V) | 4.5 |
| Typical Input Low Threshold Voltage (V) | 1.1 |
| Typical Input High Threshold Voltage (V) | 1.3 |
| Description |
