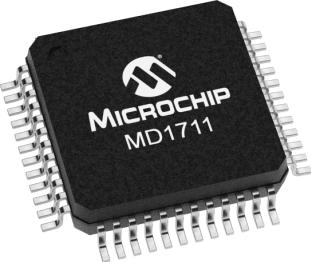

Gate and Power Drivers MD1711FG-G-M931
Microchip Technology
MD1711FG-G-M931
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| PPAP | No |
| Type | MOSFET |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | EAR99 |
| Packaging | Tape and Reel |
| Pin Count | 48 |
| Automotive | No |
| Lead Shape | Gull-wing |
| Driver Type | High Speed |
| PCB changed | 48 |
| Part Status | Active |
| Package Width | 7 |
| Latch-Up Proof | No |
| Package Height | 1.4 |
| Package Length | 7 |
| Supplier Package | LQFP |
| Number of Drivers | 12 |
| Number of Outputs | 12 |
| Standard Package Name | QFP |
| Maximum Fall Time (ns) | 8(Typ) |
| Maximum Rise Time (ns) | 8(Typ) |
| Output Resistance (Ohm) | 10(Max) |
| Peak Output Current (A) | 2(Typ) |
| Input Logic Compatibility | CMOS |
| Maximum Supply Current (mA) | 2(Typ) |
| Maximum Power Dissipation (mW) | 1200 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Propagation Delay Time (ns) | 19(Typ) |
| Minimum Operating Temperature (°C) | 0 |
| Maximum Operating Supply Voltage (V) | 5 |
| Minimum Operating Supply Voltage (V) | 1.8 |
| Typical Operating Supply Voltage (V) | 3.3 |
| Typical Input Low Threshold Voltage (V) | 0 to 1 |
| Typical Input High Threshold Voltage (V) | 1.44 to 5 |
| Description |
