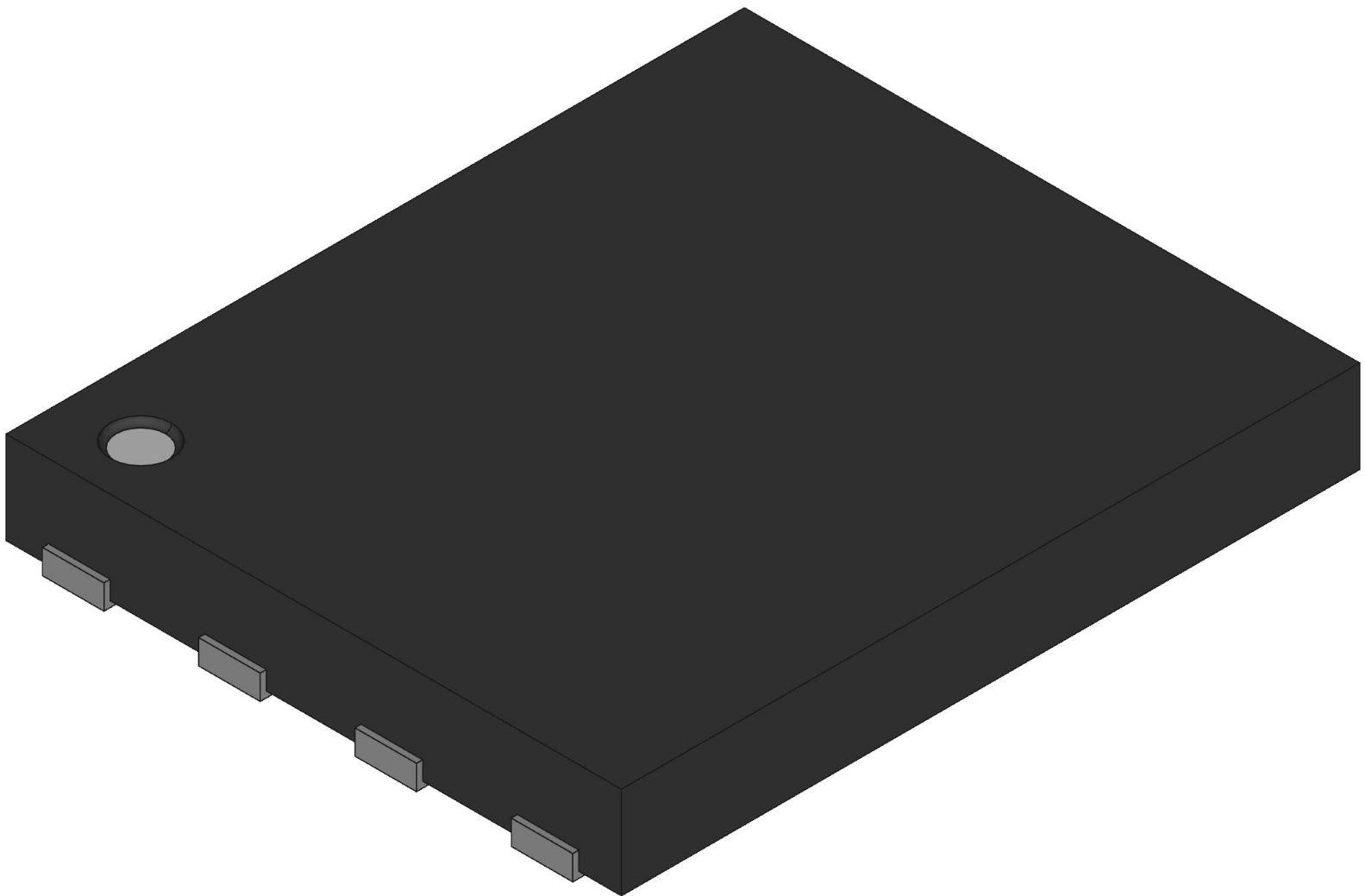

Gate and Power Drivers LTC4449EDCB#PBF
ADI
LTC4449EDCB#PBF
--
Power Management
Gate and Power Drivers
Specification
| Product Attribute | Attribute Value |
| HTS | 8542.39.00.01 |
| PPAP | No |
| Type | MOSFET |
| EU RoHS | Compliant |
| Mounting | Surface Mount |
| ECCN (US) | 0 |
| Packaging | Tape and Reel |
| Pin Count | 8 |
| Automotive | No |
| Lead Shape | No Lead |
| Driver Type | High and Low Side |
| PCB changed | 8 |
| Part Status | Unconfirmed |
| Package Width | 3 |
| Package Height | 0.75(Max) |
| Package Length | 2 |
| Special Features | Under Voltage Lockout |
| Supplier Package | DFN EP |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Driver Configuration | Non-Inverting|Inverting |
| Standard Package Name | DFN |
| Maximum Fall Time (ns) | 7(Typ) |
| Maximum Rise Time (ns) | 8(Typ) |
| Peak Output Current (A) | 4.5(Typ) |
| Supplier Temperature Grade | Extended |
| Maximum Supply Current (mA) | 0.4 |
| High and Low Sides Dependency | Synchronous |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Propagation Delay Time (ns) | 14(Typ) |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Supply Voltage (V) | 6.5 |
| Minimum Operating Supply Voltage (V) | 4 |
| Typical Input Low Threshold Voltage (V) | 3.25 |
| Typical Input High Threshold Voltage (V) | 3.5 |
| Description |
